CCTV Kit packed full of premium features, utilising the latest technology available. All products within the range are manufactured to the highest standards with cameras featuring Sharp CCD technology.

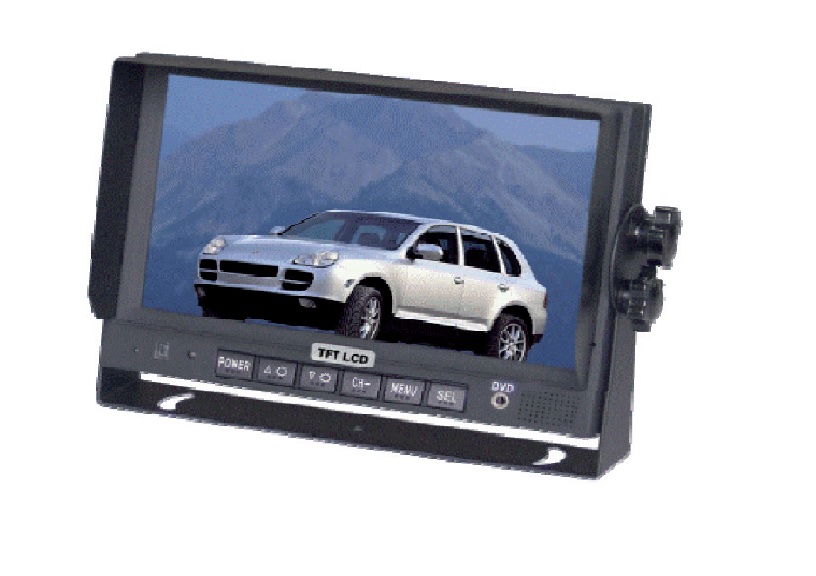

7- inch Colour LCD Monitor
Features :
1. TFT LCD monitor with wide angle view and high resolution display.
2. 11 languages available for user operation.
3. Multiple video formats available: PAL / AUTO / N443 / N358.
4. Automatic backlighting for buttons.
5. Selectable Automatic and Manual brightness control.
6. Up to 4 AV inputs – 3 camera inputs and 1 DVD input.
7. Operates from 12 – 32V. Supports 12V or 24V automobile battery.
8. Image adjustable for Horizontal, Vertical, Mirror and Normal viewing.
9. Supplies power to cameras.
10. Auto switches to back-up, left or right-side camera views.
11. On-board speaker.
12. Full-function remote control.
Specification :
LCD size: 7″
Dot pitch:0.321 x 0.370
Resolution:480 x 3 (RGB) x 234
Contrast: Brightness:400: 1
Viewing angle:350 cd/
Operating temperature:U: 45 / D: 65, R/L: 65
Storage temperature:-20~+70ºC, RH 90%
Response time:-30~+80ºC, RH 90%
Power inputs:Tr: 10 ms; Tf: 15 ms
Power consumption:DC 12~32 V
Video inputs:About 12 W
Audio inputs:3 / 4 inputs
Video outputs:3 / 4 inputs
Audio outputs:1 (22pin)
Trigger signal:1 (22pin)
Anti-vibration:2 / 3 / 4 trigger wires (4 / 13 / 22pin)
Key Speci cations:3 g (Center mount bracket) / 7 g (U-support bracket)

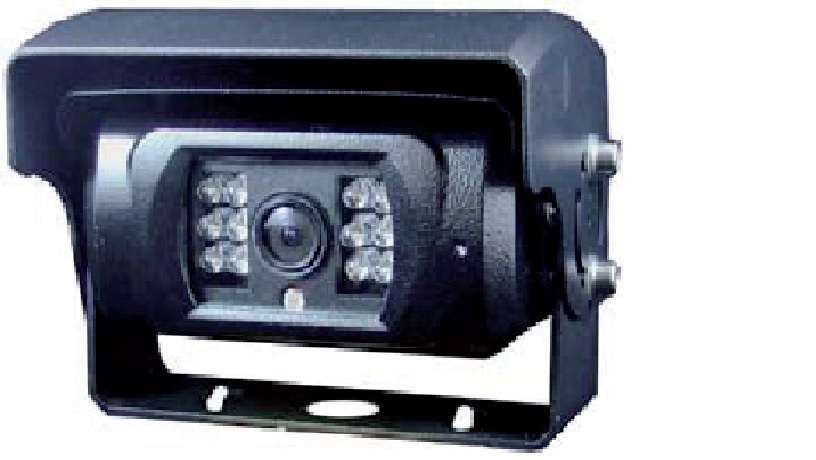

1/3” CCD Colour Weatherproof Camera
Features :
1. Weatherproof and water resistant (IP69K approved)
2. Camera with auto shutter
3. Wider sun visor and front speaker
4. Mirror / Normal image switch
5. Nightvision distance: approx. 10m (12 infrared lights)
6. Wider viewing angle up to 120 degrees
7. Day / Night sensor for automatic adjustment
• Includes 4 pin 20m cable
• Capable of controlling up to 4 cameras

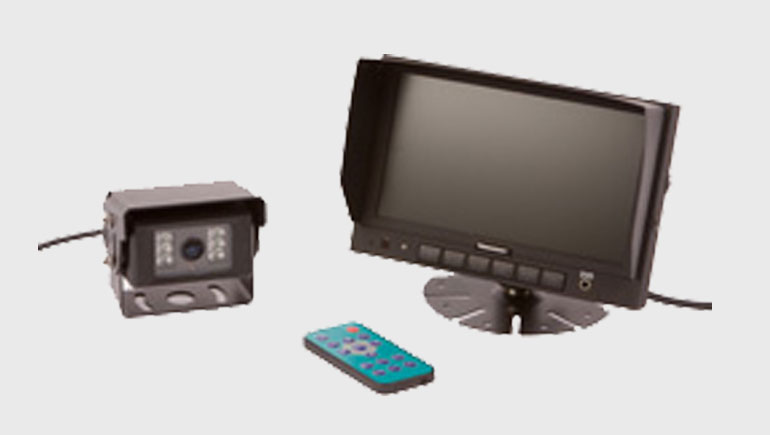

Safety Items - Rear View Camera Kit
